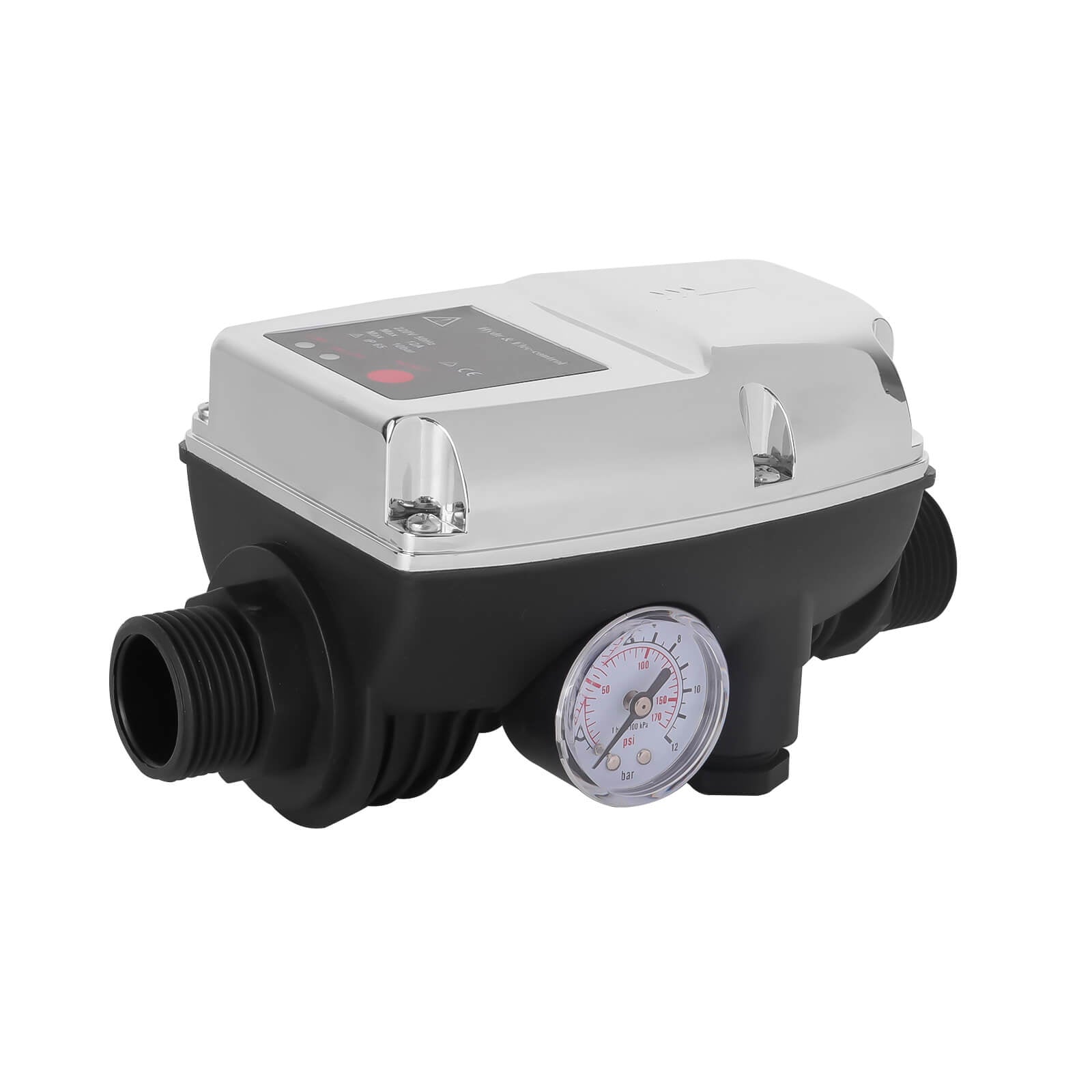

Automatic Water Pressure Controller Switch
:Water Pumps, Parts & Accessories
:Out Of Stock
: 06FTY0054ASL
Share:
Feature:
Automatic Water Pressure Controller Switch
【Automatic Control】
No pressure tank is required. The water pump automatically controls the pump's running and stops if there is a water shortage, protecting it from damage caused by dry-running.
It will start automatically once powered up again from the power-off status.
【Adjustable Pressure】
When installing, you can start pressure adjustment with the range of 1-3.5 bar according to your demand. Max. Pressure is 10 Bar.
【Time Setting for Automatic Start】
When it stops due to the lack of water, the time interval of self-start is 8 seconds, 30 seconds, 1 minute, 30 minutes, 1 hour, 2 hours.
【Wide Application】
It is versatile for a self-priming pump, jet pump, garden pump, clarified water pump, centrifugal pump.
Specification:
voltage: 110VFrequency: 50Hz
Max. current: 12A
Max. power: 1.1KW
Start pressure setting: 1bar-3.5bar
Max. working pressure: 10bar
Connection thread: R1"
Protection grade: IP65
Max. working temperature: 110 ℃
Wiring requirements: 7.5-9mm

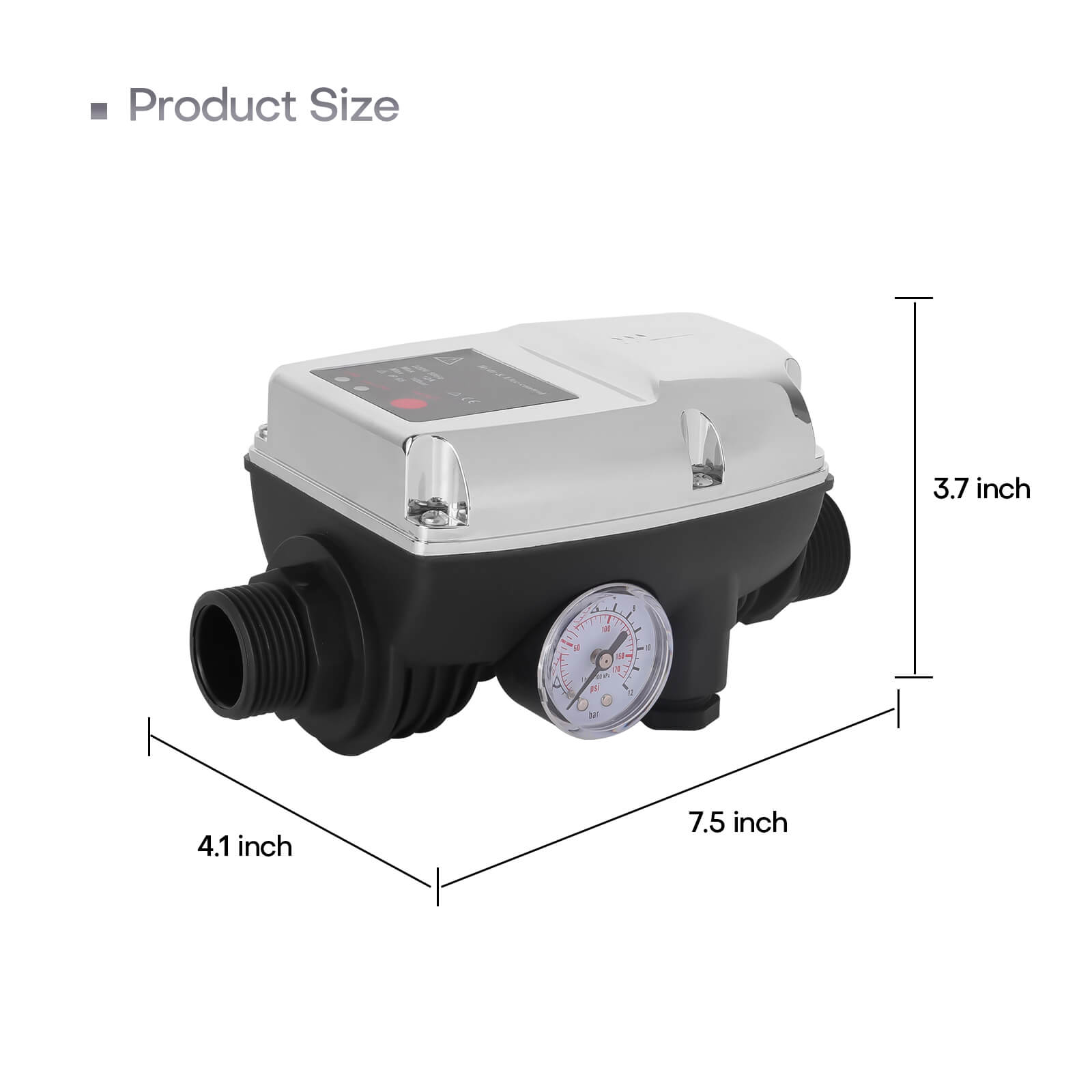

Size: 19.5 x 9.3cm /7.68 x 3.66in
Weight: 632g
Package Content:
1x Water Pump1x Terminal Head Pack
1x User Manual
